Heavy Duty Stopper Cylinder RS2H
 | ・Weight: Reduced by up to 22% (Compared with the current RS1H series) ・Cylinder tube: Shortened by up to 9 mm (RS2H63-30 stroke) ・Capable of stopping pallets softly ・Stopper cylinder with shock absorber ・Lock Release Specification (-XC102) |
| Type | Series | Action | Bore size（mm） |
|---|---|---|---|
| Flange | RS2H | Double acting Double acting with spring Single acting, spring extend | 50，63，80 |
■Light weight / compact
Weight: Reduced by up to 22%
Cylinder tube: Shortened by up to 9mm
■Easy replacement of shock absorbers

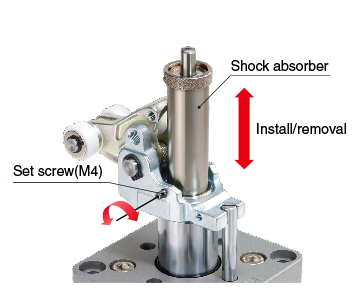

Replaceable just by loosening the set screw

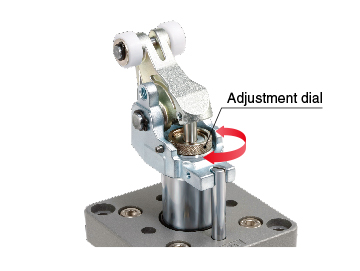

■Stop the workpiece gently with adjustable shock absorber.
Resistance value can be adjusted by rotating the adjustment dial.

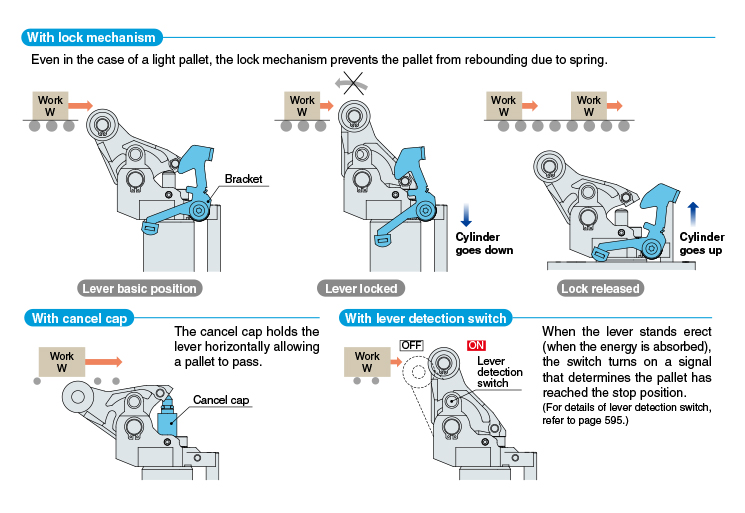

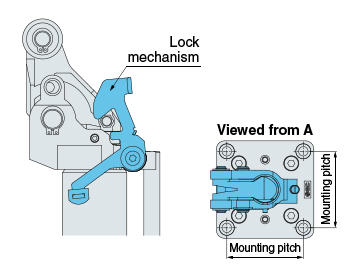

■Better handling and visibility of the lock mechanism (Option)
The shape of the lock is changed. Easy to unlock manually,
and instantly see whether it is locked.

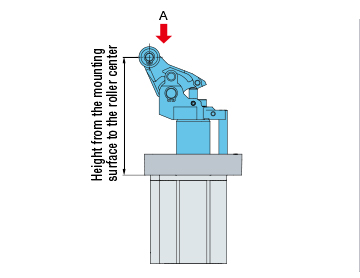

■Mounting is interchangeable with the current RS1H series.
Cylinder mounting pitch and the height from the mounting
surface to the roller center are interchangeable with the RS1H series.
■Compact auto switch (D-M9□) and magnetic
field resistant auto switch (D-P3DW) can be
mounted to three sides.
field resistant auto switch (D-P3DW) can be
mounted to three sides.
Compact auto switch can be directly mounted to round switch mounting groove.

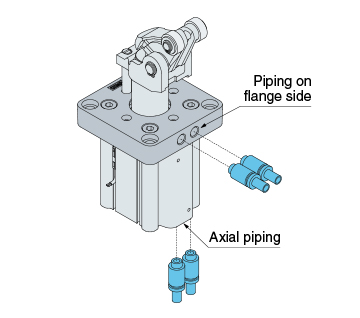

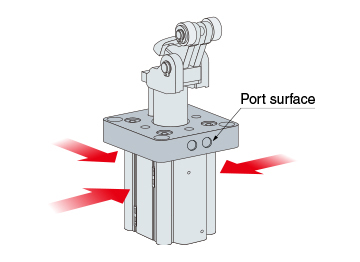

■Piping is available from 2 directions.

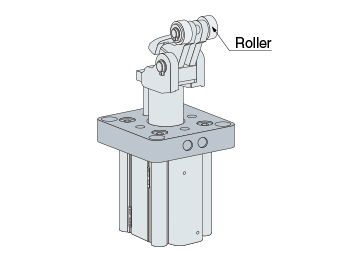

■The roller can be selected from two materials to suit the application.
(Resin, Carbon steel)
(Resin, Carbon steel)

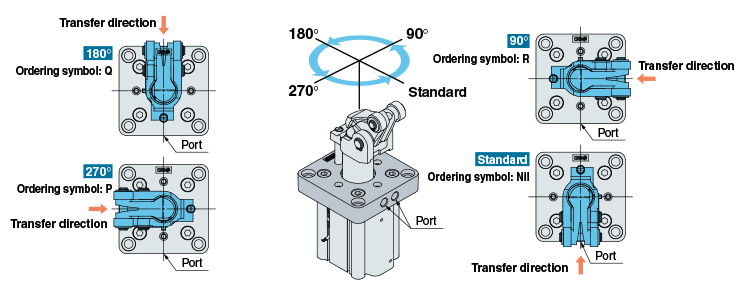

■The roller lever direction can be changed in 90° steps.
To adapt the roller lever of the stopper to the work piece direction,
the roller lever can be positioned in 4 different directions in 90° steps around the piston rod.
■Options

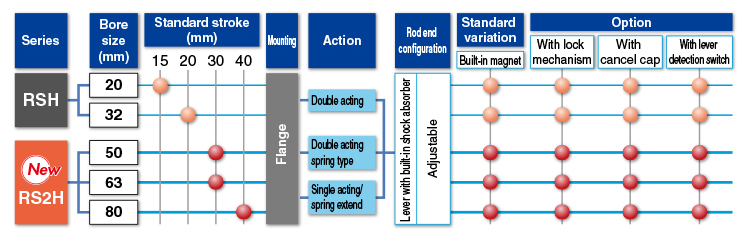

■Series Variations
Heavy Duty Stopper Cylinder RS2H
